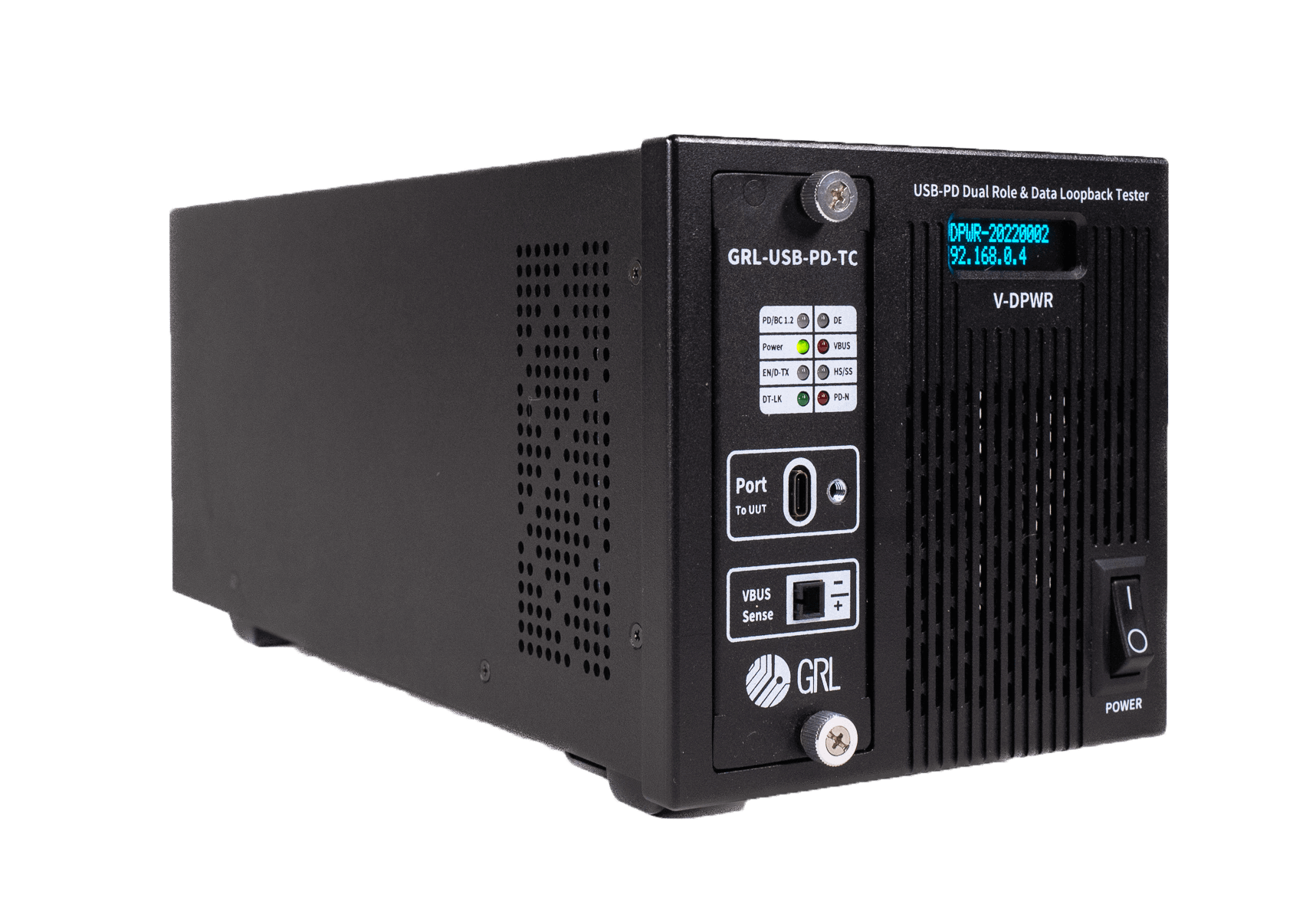

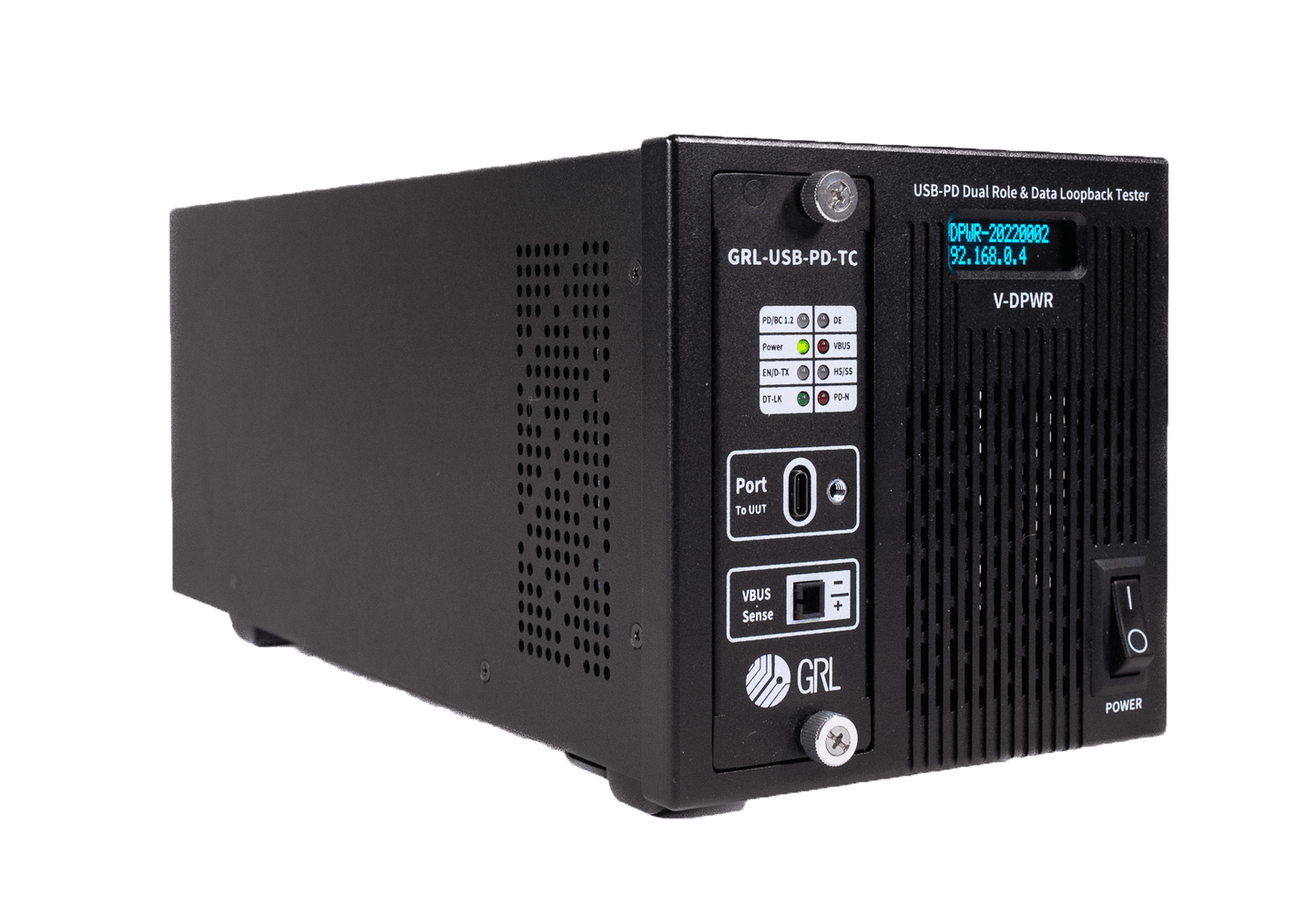

USB Power Delivery Dual Role Power & Data Loop Back Tester (GRL-V-DPWR)

USB Power Delivery Dual Role Power & Data Loop Back Tester (GRL-V-DPWR)

$5,400.00
$6,000.00 $5,400.00
Sale Sold out

Address demanding test requirements of USB Type-C®/USB Power Delivery (USB PD) hosts and devices with the fast, easy to use, and cost-effective GRL-V-DPWR. Complete with support for loading and sourcing of a single 100W USB-C port and an open API that allows test engineers to use their own software (C#, NI, TestStand, Python), the V-DPWR is ideal for reliable testing and high-volume production.

Interpret test results easily with front panel LEDs that provide detailed data enumeration and keep operations running round the clock with strong thermal airflow.

Key Features

  • Supports the following specifications:
    • USB PD 2.0 & PD 3.1 Programmable Power Supply (PPS) negotiation
    • USB 2.0 and USB 3.2 data loopback testing
    • Up to 100W of power loading and sourcing
    • Up to 7.5W per port for VCONN power loading
    • IR drop compensation through VBUS voltage sense line within the GRL Tester cable offers

  • Hardware support for:
    • Both USB Type-C and Type-A ports
    • Enables V-TE-PWR as a cable by configuring for 3A and 5A capabilities so that negotiation can be done up to 100W without dependency on EMCA cables
    • AC and battery power for portability
    • Conducts cable flip tests automatically
    • Ethernet control from external PC or network
    • Effortlessly fasten test cables to test cards with screw-based connectors that prevent damage to the tester during continuous use
  • Report generation and data overview
    • View all traces, OCP events, and configurable pass/fail criterion in real-time on host PC
    • Detailed test execution steps and report
    • Detailed test execution results exportable in HTML, CSV, and PDF report formats
    • All results saved in a database for ease of retrieval

  • User-friendly interface
    • Front panel led indication
    • Intuitive Graphical User Interface (GUI)
    • Hardware control via customer’s existing software through open API: (C#, NI Test Stand, Python, etc.)



Options & Accessories

Explore our range of accessories designed to streamline the testing of cables of different lengths:

  • GRL-V-STC-50 - GRL Tester cable with VBUS sense wire - 50cm
  • GRL-V-STC-100 -  GRL Tester cable with VBUS sense wire - 100 cm
  • GRL-V-STC-300 -  GRL Tester cable with VBUS sense wire - 300 cm
