USB-PD-TC-100 Test Card for GRL-V-UP-10SC and V-DPWR

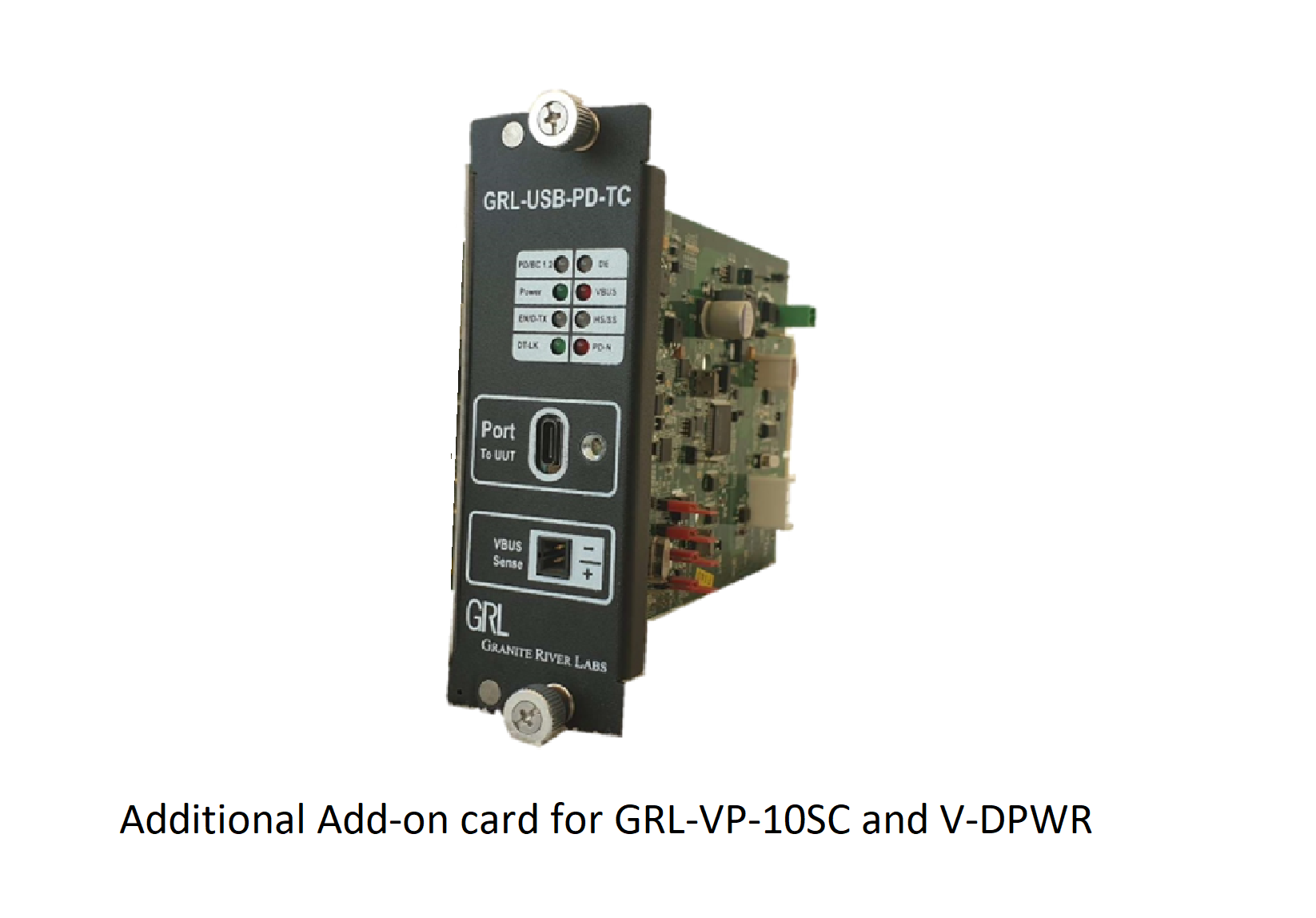

GRL V-UP-TC-100 is an additional Add-on test card for GRL-V-UP-10SC and V-DPWR systems which is used for testing USB Type-C/PD hosts, hub modules, docks, monitors, and chargers.

Modular and scalable, the V-UP can add up to 10 test cards in a single 3U rack unit chassis. Each test card supports loading of a single 100W USB-C port, or dual 60W USB-C ports. Users it can start with any number of test cards and add more cards based on increased testing volume. Additional 3U rack units can be fitted to the same rack to add even greater test capacity.

The GRL V-UP has an open API which allows test engineers to use their own software (C#, NI TestStand, Python, etc.) for control or take advantage of easy to use software developed by GRL.

Perfect for reliability and environmental chamber testing as well as high volume production testing requirements. Strong thermal airflow design allows for 1000W max to be continuously run per rack unit. USB test times can be designed to be less than a few seconds with a single setup.

• USB PD Sink Functionality and USB Loop back device
• Support USB PD 2.0 and 3.0 with PPS negotiation
• Draws up to 100W of VBUS and 7.5W of VCONN
• Data loop back with USB 2.0 and 3.0 (5Gbps link)
• Automatic data throughput level monitoring
• Quick diagnostic LED indication on the front panel
• Provision for V-BUS sense to avoid IR drop related errors
• Cable flip, Cable VDMs can be emulated with the GRL’s PD Cable
• Cables can be fitted firmly using thump screws to provide more reliable cable connections
• Supports USB Type-C and Type-A ports
• Battery Charging 1.2 detection and testing
